Numbers and statistics are boring and less intuitive. Colasoft Capsa provides other ways to illustrating these numbers ¨C Graphs and Matrix.

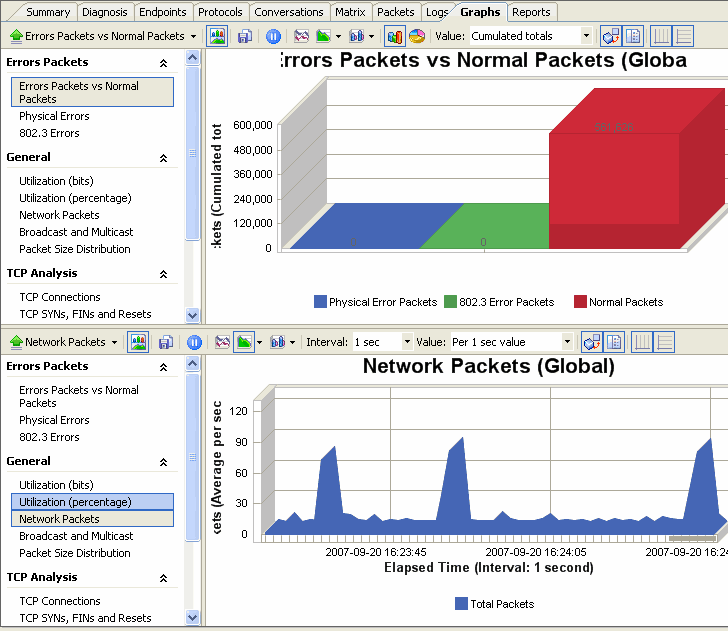

Graphs

Colasoft is able to display captured data in graphs in real-time. You may also choose to display the data in line chart, area chart, bar chart or pie chart. There are many options you may choose to display, generally in four groups, including error packets, utilization, packet size distribution etc. You can also select the compare mode to do a comparing analysis.

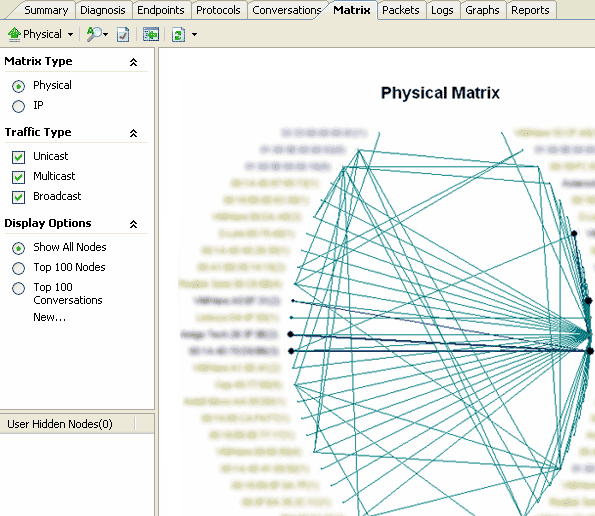

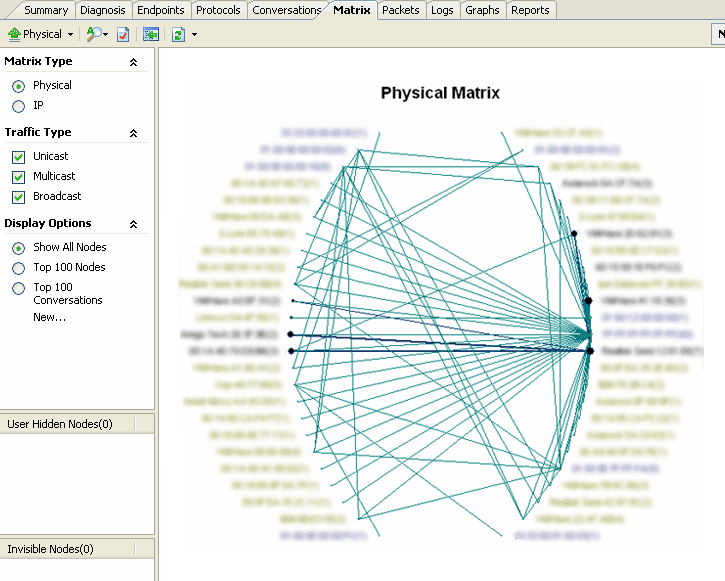

Matrix

The Matrix view lets you quickly create a picture of all the traffic or sending/receiving traffic. The nodes around an elongated ellipse display the hosts in your network, the line weight present the volume of traffic between nodes. Color of the lines indicates different traffic types and transmission activities.
