Matrix Display Options
Unique to Colasoft Capsa enterprise edition. The matrix view has two sections: matrix list and display pane. You can customize the matrix pictures by setting the parameters in the matrix list and display pane.
  • Display List
    The matrix list shows the matrix groups and the title of available matrix for the current node.
    Group Description
    Matrix Type Provides two types address matrix - Physical address and IP address.
    Traffic Type Provides three traffic types – Unicast, Multicast and Broadcast. By default this view shows the traffic of global network, you can select one or two types to view the specific traffic.
    Display Options Provides three predefined display options types and customizing display options.

    • Display Options
      This pane offers three predefined display options - Show All Nodes, Maximum 100 Nodes and Maximum 100 Conversations. You can also customize your own display options by click the New… button.



  • Display Pane

    • Character Size
      Click the dropdown button in the display pane to select a character display size.

    • Matrix Option

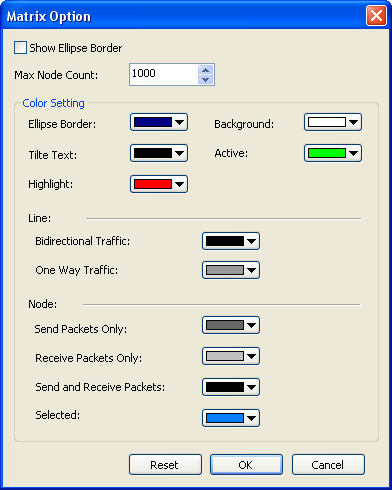

      The Matrix Option includes Show Ellipse Border, Max Node Count and Color Setting.


      •
