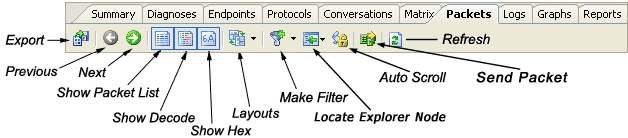

| Button |
Description |
| Export |
Exports selected packets to a file in public formats such as
Text and HTML. |
| Previous |
Backs to the previous packet if applicable. |
| Next |
Goes to the next packet if applicable. |
| Show Packet List |
Shows the packet list if check on this button. |
| Show Decode |
Shows the packet decode window if check on this button. |
| Show Hex |
Shows the Hex decode window if check on this button. |
| Layouts |
Selects a layout of these three windows from the three
predefined layouts.

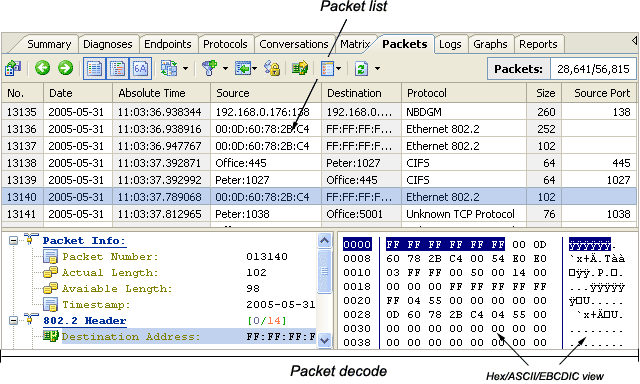

By default, the packet decode information are showed at the bottom of the Packets
view. |
| Make Filter |
Opens the Packet Filter dialog and makes a new filter on the
basis of the selection. |
| Auto Scroll |
The packet list will display the newest packet always
if check this button. But when you select an item in the view,
this button will stop execution until you check it again. |
| Refresh |
Refreshes the current view. |
