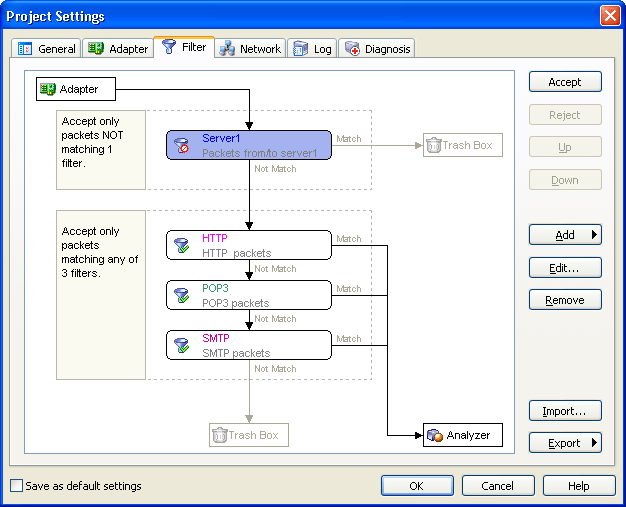

This page allows you to set filters for analyzing packets. You can add a new filter or select from the Filter Table lists some predefined filters, or import filter from a file.
- Accept
By clicking this button (if applicable), you can change the current filter's status, Colasoft Capsa will accept the packets matching this filter for analysis.
- Reject
By clicking this button (if applicable), you can change the current filter's status, Colasoft Capsa will not accept the packets matching this filter for analysis.
- Up
By clicking this button (if applicable), you can move up the current filter.
- Down
By clicking this button (if applicable), you can move down the current filter.
- Add

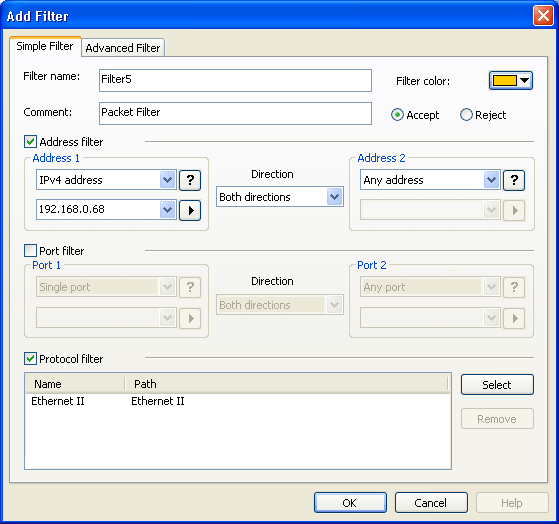

Click on this button and choose to create a new filter or add from the Filter Table. When you choose New, Colasoft Capsa will open the Add Filter dialog, where you can insert a simple filter or an advanced filter. For more description on how to create a new filter, please see the chapter Adding a new filter.
When you choose From Filter Table, you can check one or more predefined filters and decide the rule. The new added filters will be graphically displayed one by one, which status and position can be changed with the Accept, Reject, Up or Down button.
- Edit...
To modify the current filter, click the Edit... button and open the Modify Filter dialog, note that the modifications made from this dialog is only project-related. To modify the filters in the global Filter Table, you must open the Filter Table by clicking the button  in the toolbar.
- Remove
When this button pressed down, the current filter will be removed from filter list and can not be recovered.
- Import...
You can import filter from a saved filter file.
- Export
Click on this button and choose to export all filters or just selected ones.
For the detailed descriptions about how to create, modify and use filters in capture, please see the "Filters" chapter. |
|
