Users can custom own parameters of the Ping command. Click the Options… command in the Options menu to open the dialog and modify the listed parameters.

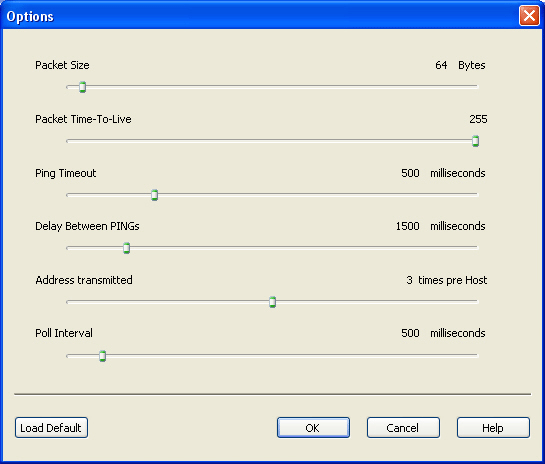

The below figure is the parameter settings in default.

• Packet Size
  Sets the size of ICMP packet when execute Ping command. The packet size range from 1 to 1024 bytes.

• Packet Time-To-Live
  Indicates how many more hops this packet should be allowed to make before being discarded or returned, range from 1 to 255.

• Ping Timeout
  The amount of time to allow for a response from the peer equipment, range from 100 to 2000 millisecond.

• Delay Between PINGs
  The interval time between two pings, range from 100 to 10000 millisecond.

• Address transmitted
  The amount of host or domain resolution, range from 1 to 5.

• Poll Interval
  The refresh interval of graph, range from 100 to 5000.

• Load Default
  Clicks this button to reset all parameters to default position.
