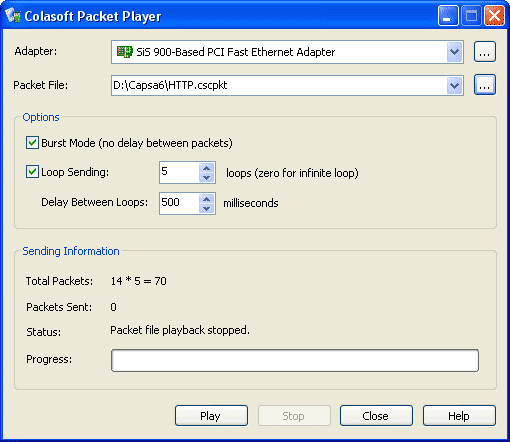

Sets the parameters as the below figure. It means the HTTP.cscpkt
packet file will be replayed five times from the SIS 900-Based PCI
Fast Ethernet Adapter, five hundred milliseconds delay between
every loop, and the packets will be replayed without delay in one loop .
The Total Packets: 14*5=70 means that there are fourteen packets in the
selected packet file, every packet will be replayed five times and
seventy packets will be replayed totally.

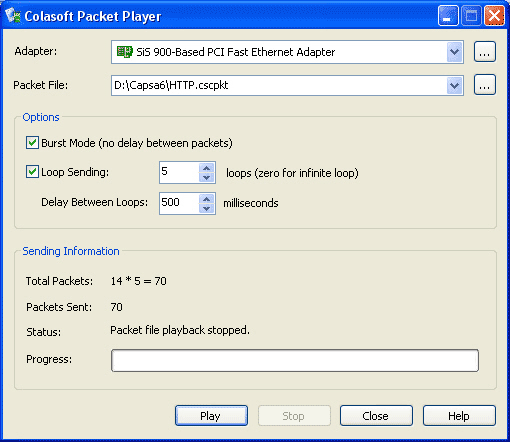

Then, click the Play button to start replay. After the replay is complete, the Packets Sent will change into 70 (see the below figure).
|
