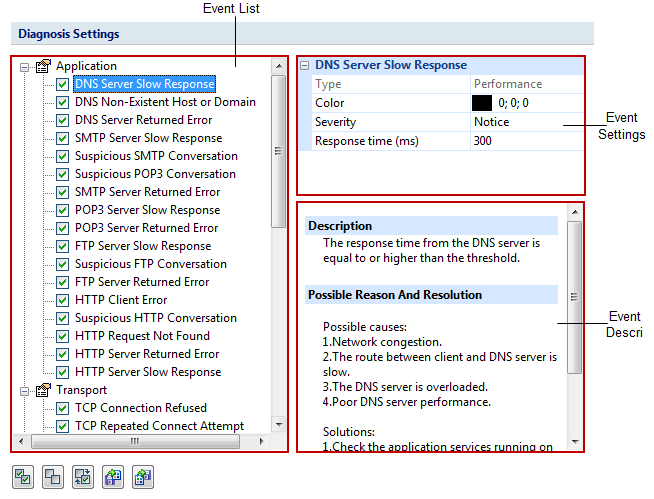

This tab lists all available diagnosis events of the loaded analysis module of the current analysis project. All diagnosis events are hierarchically grouped in protocol layers: Application layer events, Transport layer events, Network layer events and Data link Layer events. You can easily find which layer a network problem belongs to. The Diagnosis Settings tab appears as follows:
The Diagnosis Settings tab includes three sections.
There are five buttons on the bottom of this window to help you manage all your diagnosis events.
|Selects all the diagnosis events in the list.|
|Clears the selection on all the diagnosis events in the list.|
|Inverts the selection on the diagnosis events in the list.|
|Reads the diagnosis event settings from a .cscdiag file.|
|Saves the diagnosis event settings to a .cscdiag file.|
