In addition to the four tools provided by default, users can add other Windows applications and tools into Colasoft Capsa with the External Tools Management dialog box. You cannot only invoke but also execute the added applications and tools via Colasoft Capsa.
To open External Tools Management dialog box, click Tool Settings in Tools tab of the Ribbon.
The External Tools Management dialog box appears.
You can click New to attach new tools, Delete to delete your selected Tool in Left pane. And also you can rearrange the listed items order by Move up and Move Down.
To demonstrate, you can follow the steps below to attach the Tracert command of Windows into Colasoft Capsa.
1. Click the New button, the Attribute pane appears.
2. Enter Tracert in Title textbox as its name.
3. Enter the path of the program in Command: C:\WINDOWS\system32\tracert.exe, or click
to choose the path.

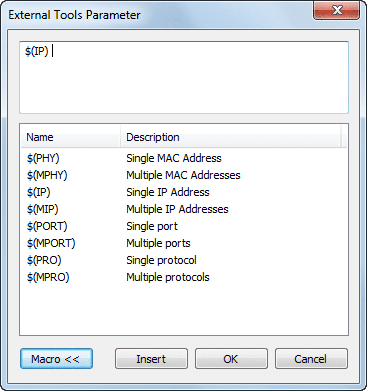

4. Click after Parameters textbox. The External Tools Parameter dialog
box appears.
5. Click the Macro >> button to view the details.
Colasoft Capsa lists the parameters IP Address, Physical Address, Port and Protocol in the window. You can add a parameter by selecting its name and clicking the Insert button. If the parameters are not listed, you can enter the parameters into the upper window manually, like as -d, -h, -j and -w in Tracert command. Every parameter should be separated with a blank space.
6. Choose the IP Address and click Insert and then click OK to save the settings and back to the External Tools Management dialog
box.
Now you can find Tracert icon in Tools tab of the Ribbon. Click it to open tracert command.
