Diagnosis

This tab lists all available diagnosis events of the loaded analysis module of the current analysis project. All diagnosis events are hierarchically grouped in protocol layers: Application layer events, Transport layer events, Network layer events and Data link Layer events. You can easily find which layer a network problem belongs to. The Diagnosis tab appears as follows:

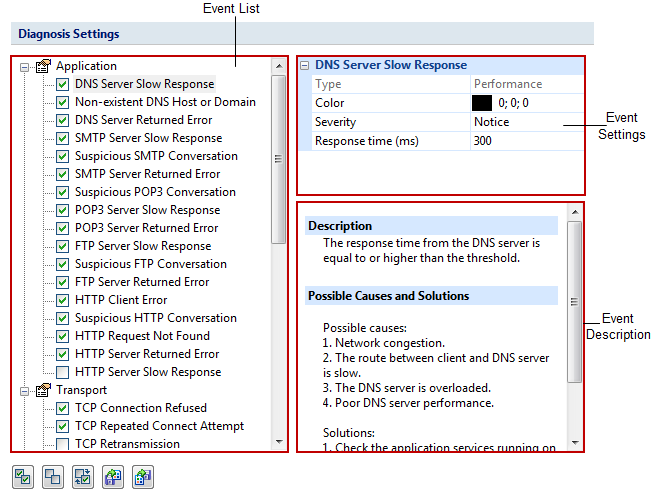

This tab includes three sections.

• Event List: Lists all available diagnosis events of current analysis profile. The occurred diagnosis events will display on the Diagnosis view only when they are selected on the Event List section.
• Event Setting: Allows you to edit the options of a specific event selected on the Event List section just by clicking the options. The options include color, severity type and other available parameters which depend on the event.
• Event Description: Provides the event description and possible reasons and resolutions for you to quickly throubleshoot the network when there are network problems.

There are five buttons on the bottom of this window to help you manage all your diagnosis events.

Item	Description
	Selects all the diagnosis events in the list.
	Clears the selection on all the diagnosis events in the list.
	Inverts the selection on the diagnosis events in the list.
	Reads the diagnosis event settings from a .cscdiag file.
	Saves the diagnosis event settings to a .cscdiag file.
