Graph types

Capsa provides a wide range of statistics items for you to create graphs, generalizing as two types:

• Sample chart
• Top chart

Sample chart

Sample Chart includes statistics items as follows:

• Diagnosis Statistics: Information Diagnosis, Notice Diagnosis, Alarm Diagnosis and Error Diagnosis
• Wireless Analysis: Noise Traffic, Control Frame Traffic, Management Frame Traffic, Decrypted Data Frame Traffic, Unencrypted Data Frame Traffic and Undecrypted Data Frame Traffic
• Traffic: Total, Broadcast, Multicast, Average Packet Size and Utilization
• Packet Size Distribution: <=64, 65-127, 128-255, 256-511, 512-1023, 1024-1517 and >=1518
• Address: Physical Address Count, IP Address Count, Local IP Address Count and Remote IP Address Count
• Protocol: Total Protocols, Data Link Layer Protocols, Network Layer Protocols, Transport Layer Protocols, Session Layer Protocols, Presentation Layer Protocols and Application Layer Protocols
• Conversation: Physical Conversation, IP Conversation, TCP Conversation and UDP Conversation
• TCP:TCP SYN Sent, TCP SYNACK Sent, TCP FIN Sent and TCP Reset Sent
• Alarm: Security, Performance and Fault
• DNS Analysis: DNS Query and DNS Response
• Email Analysis: SMTP Connection and POP3 Connection
• FTP Analysis: FTP Upload and FTP Download
• HTTP Analysis: HTTP Request, HTTP Requested and HTTP Connection

Top chart

Top Chart includes statistics items as follows:

• Top Physical Group by Total Traffic
• Top Physical Group by Received Traffic
• Top Physical Group by Sent Traffic
• Top IP Group by Total Traffic
• Top IP Group by Received Traffic
• Top IP Group by Sent Traffic
• Top Physical Address by Total Traffic
• Top Physical Address by Received Traffic
• Top Physical Address by Sent Traffic
• Top IP Address by Total Traffic
• Top Local IP Address by Total Traffic
• Top Remote IP Address by Total Traffic
• Top IP Address by Received Traffic
• Top IP Address by Sent Traffic
• Top Local IP Address by Received Traffic
• Top Local IP Address by Sent Traffic
• Top Remote IP Address by Received Traffic
• Top Remote IP Address by Sent Traffic
• Top Application Protocols
• Packet Size Distribution

1. The Physical Group/IP Group means the node group of Physical Explorer/IP Explorer in the Node Explorer window.

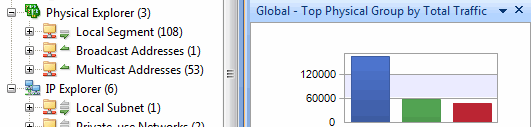

2. Different Top items have different Top numbers, e.g. the top item Top Physical Group by Total Traffic will have only Top 3 if the Physical Explorer has only 3 groups (Fig below).

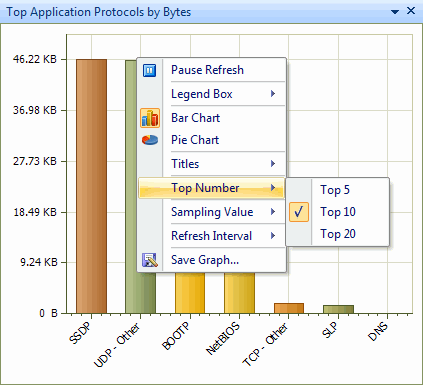

3. You can change the Top number by right-clicking the chart (Fig below) and selecting Top Number on the pop-up menu.



4. You can change the sampling value of TOP Chart by right-clicking the chart and selecting Sampling value on the pop-up menu.
