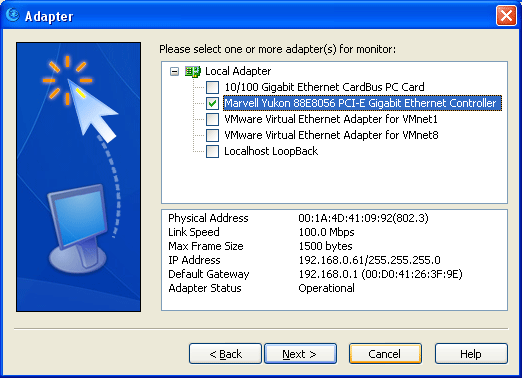

Adapter Selection : you can select multiple adapters.

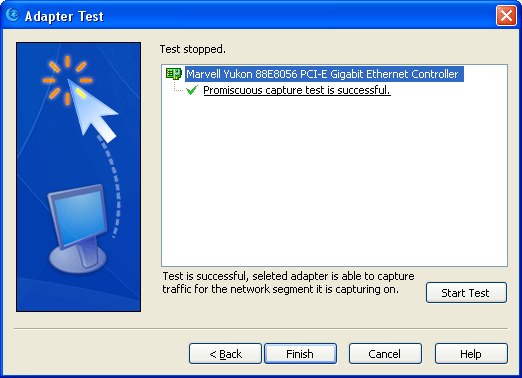

Adapter Test: test the adapter/adapters selected in the previous page.

• The green tick means the test is successful.
• The red cross means the test is failed.
• The yellow exclamation mark means the test is in process and there are already some test results. More details can be seen if you move your Mouse to the Item.

Test duration is displayed at the bottom. There is no limit for test duration, you have to stop it manually.

When test is over, whether it is successful or not, the time display will be replaced by a description of the test result. If you press Next before the test is over or without pressing Stop button, a prompt will pop up to notify you "stop testing first".

Notice: Do not summon the NIC Test Wizard from Start page if you want to test the LoopBack. It won't be listed there unless you summon Test from Adapter Settings.

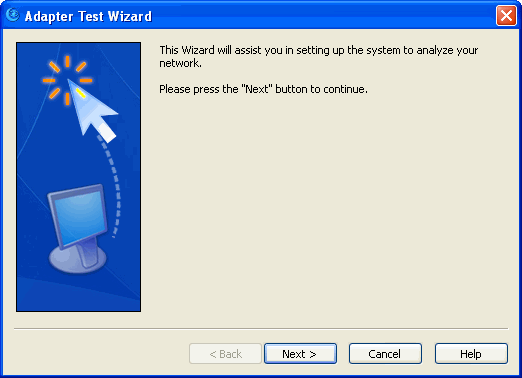

NIC Test Wizard allows you to select and test adapter/adapters to check out whether the installation and the deployment is correct.
