Send packet

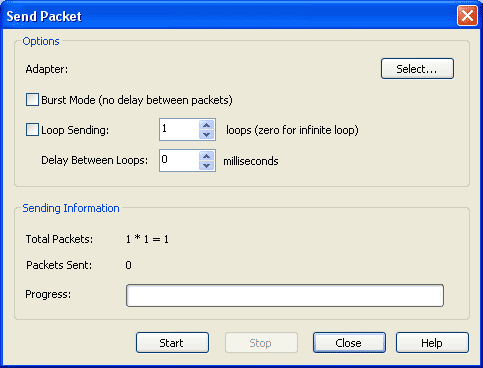

Users can send the captured packets listed in the Packets view and packets list sub-view of Conversations view. Select one or more packets and right click, choose the Send Packet command to open the Send Packet dialog.

You can customize the sending parameters: adapter and loops time.

  • Adapter

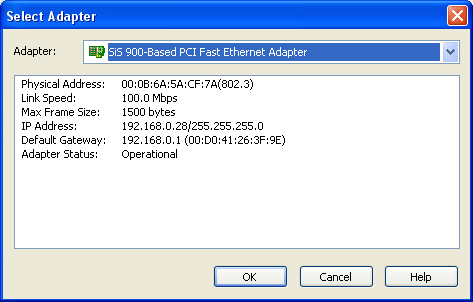

    Users can define a adapter for sending packet from if there are more than one adapters in the PC. Clicks the "Select" button on the right of "Adapter:" to open the Select Adapter dialog, chooses an adapter from the combo box. The window under the combo box will display the detailed information of the selected adapter.



  • Bust Mode
    Check this option, Colasoft Packet Builder will send packets one after another without intermission. If you want to send packet as the original delta time, please do not check this option.

  • Loop Sending
    Defines the repeated times of the sending execution, one time in default. Please enter zero if you want to keep sending packets until pause or stop it manually.

  • Delay Between Loops
    Appoints the interval between every loop if you defined the loop times more than one. Colasoft Packet Builder will send without interval between every loop in default.

  • Total Packets
    Displays the number of sending packets. For example, 4*5 means four packets are selected and each one will be sent five times. So Colasoft Packet Builder totally sent out 20 packets.

  • Packets Sent
    Shows the number of packets have been sent successfully. Colasoft Packet Builder will display the the packets sent unsuccessfully too if there is a packet did not sent out.

  • Process
    The process bar simply presents an overview of the sending process you are engaged in at the moment.

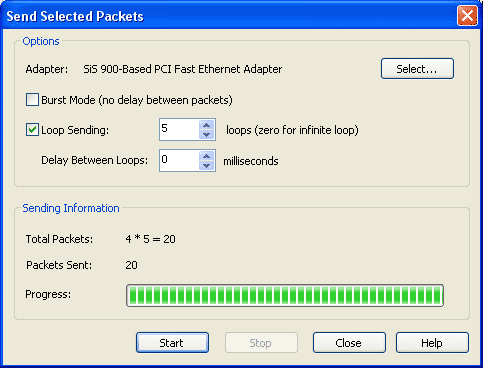

A dialog will display the results of the execution. The sending parameters can be seen on the top on the dialog.
