Options - Analyzer

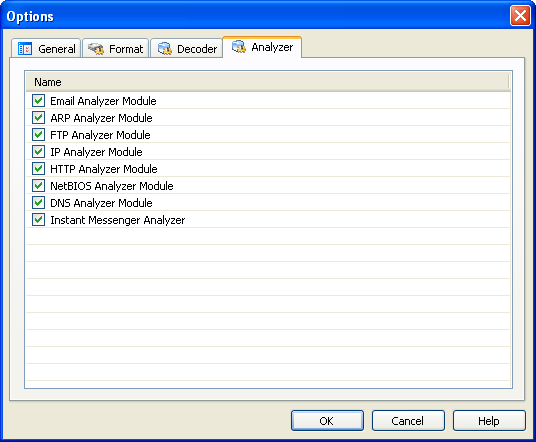

The Analyzer page list the advanced analyzers, all of them are enabled in default. To reduce resource occupation and improve the global efficiency, users can close a analyzer by uncheck the box before it to get more clear view of the analysis results.

When you disable an analyzer in the Analyzer page, Colasoft Capsa will stop analyzing the corresponding protocol elements or displaying the analysis results in the relative views or settings until you enable it again. The following table is the views effected by every analyzer.

Analyzer	Relative views or settings
Email Analyzer Module	Summary view, Logs view, Reports view, Graphs view, Project Settings - Diagnosis, Project Settings - Log
ARP Analyzer Module	Diagnosis view, Reports view, Project Settings - Diagnosis
FTP Analyzer Module	Summary view, Logs view, Reports view, Graphs view, Project Settings - Diagnosis, Project Settings - Log
IP Analyzer Module	Diagnosis view, Reports view, Project Settings - Diagnosis
HTTP Analyzer Module	Summary view, Logs view, Reports view, Graphs view, Project Settings - Diagnosis, Project Settings - Log
NetBOIS Analyzer Module	Resolves host name passively if uncheck this module.
DNS Analyzer Module	Summary view, Logs view, Reports view, Project Settings - Diagnosis, Project Settings - Log
Instant Messenger Analyzer	Summary view, Logs view, Reports view, Project Settings - Diagnosis, Project Settings - Log

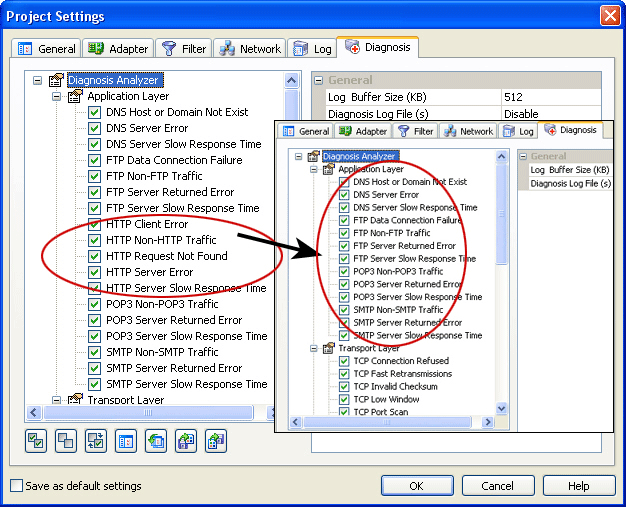

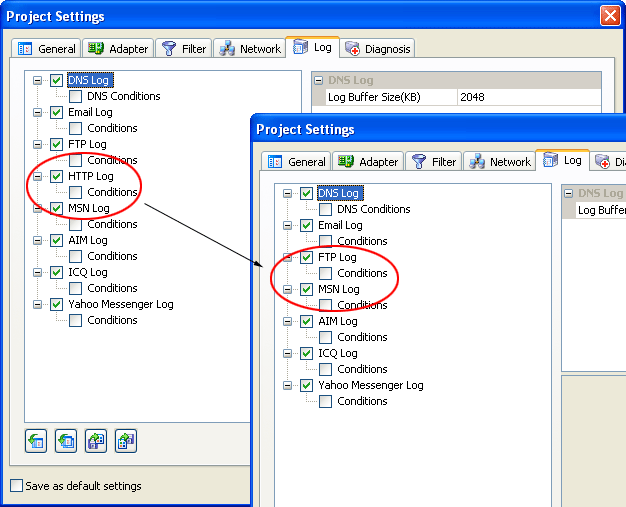

For example, uncheck the HTTP Analyzer Module. The statistic information HTTP Analysis in the Summary view, Logs view, Reports view, Graphs view and the HTTP Requests group in the Logs view are disable. And in the Project Settings dialog, the HTTP Events in the Diagnosis page and the HTTP Log in the Log page are disabled too.
