Network Group

You can open the Network Group of the Network Profile dialog through the following:

• On Start Page: Double-click a network profile in the Network Profile section to open the Profile Management dialog. You will find Network Group Settings on this dialog.


• In an analysis project: Click the General icon on the Network Profile group of the Analysis tab of the Ribbon (figure below).

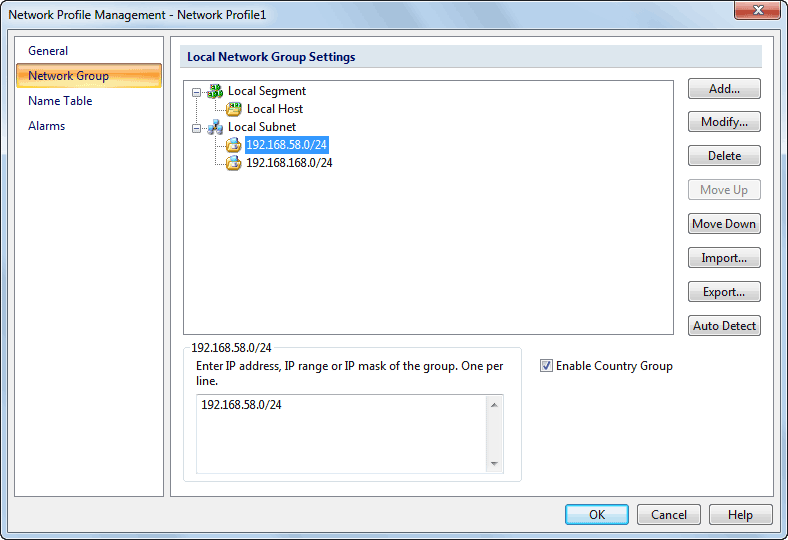

The Network Group tab appears as follows:

The Network Group is used to customize your network. You can divide IP addresses and MAC addresses of your network into different groups. Thus you save your time to lock down the troubled host in a group.

Based on your network, all IP nodes and MAC nodes can be defined into different groups that you will identify local traffic from internet traffic and broadcast traffic from multicast traffic with ease. For example, you can divide IP address groups by department names.

Colasoft Capsa automatically generates one default profile, which has the same result as you click Auto Detect and Colasoft Capsa will map out a default structure of your network based on IP addresses and MAC addresses.
