Packet Builder - Edit Packets

In addition to create packets, Colasoft Packet Builder allows you to edit the decoding information in the two editors - Decode Editor and Hex Editor. The feature of editing decoding information of packet is unique to Colasoft Packet Builder, as it is not supported by others packet builder program.

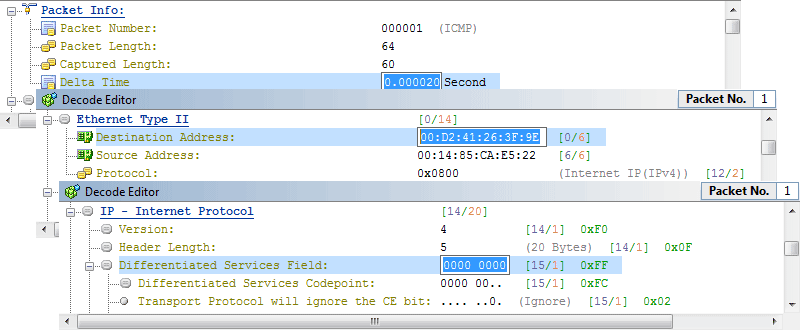

Decode Editor

Users can edit the packet decoding field by double-clicking the decoding field. The corresponding field in the Hex Editor and Packet List will change with the modification of the decoding.

Packet Builder will validate the entries in the editor. It will popup a window to inform you if the entry is incorrect and undo the modification. You may save the incorrect entry with the click the Esc key if you confirm the entries, though.

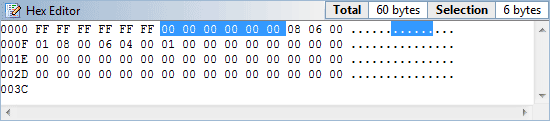

Hex Editor

The Hex editor displays the actual packet contents in raw hexadecimal on the left and its ASCII equivalent on the right. For you convenience, both the Hex and ASCII are changeable. The Hex used for modifying the hexadecimal code while the ASCII used for changing the packet text.

Packet Builder enables Checksum by default and entries the calculated checksum automatically. You can click to disable auto calcuoate checksum and enter your value manually.
