The Matrix Tab

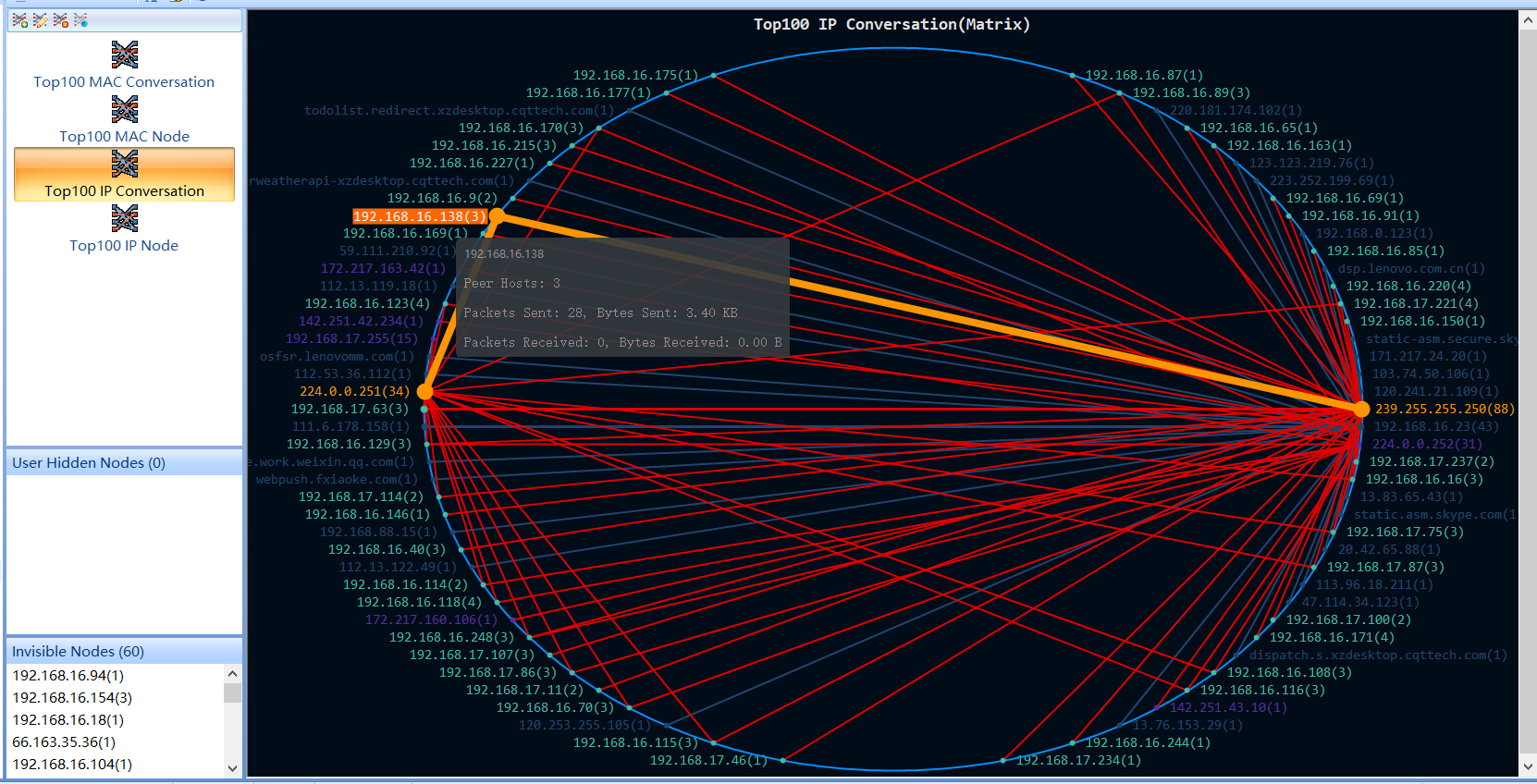

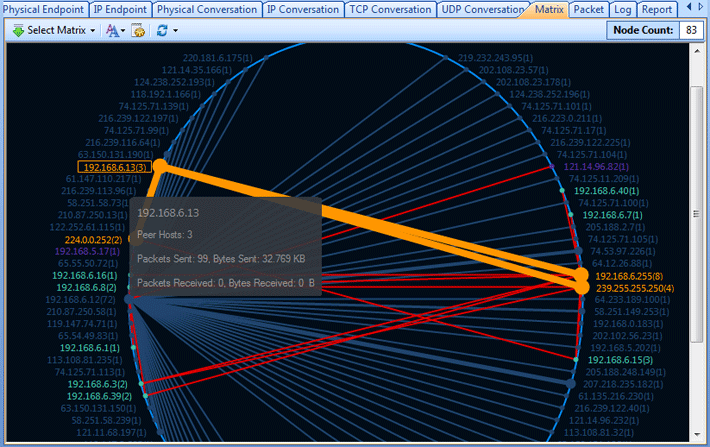

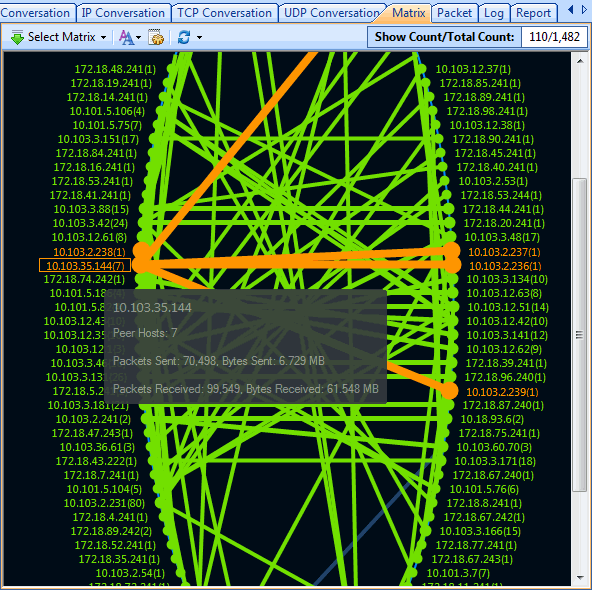

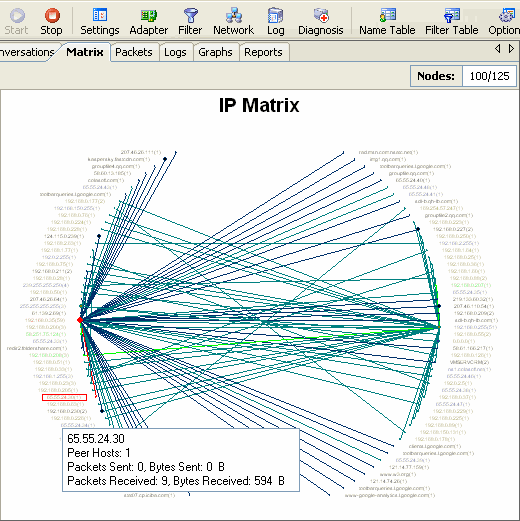

The Matrix tab visualizes all network connections and traffic details in one single graph. The nodes around an elongated ellipse display the hosts in the network; the weight of the line between the nodes indicates the traffic, and the color indicates the communication status. By clicking on a single node, network administrators can view its detailed traffic information.

network matrix tab
